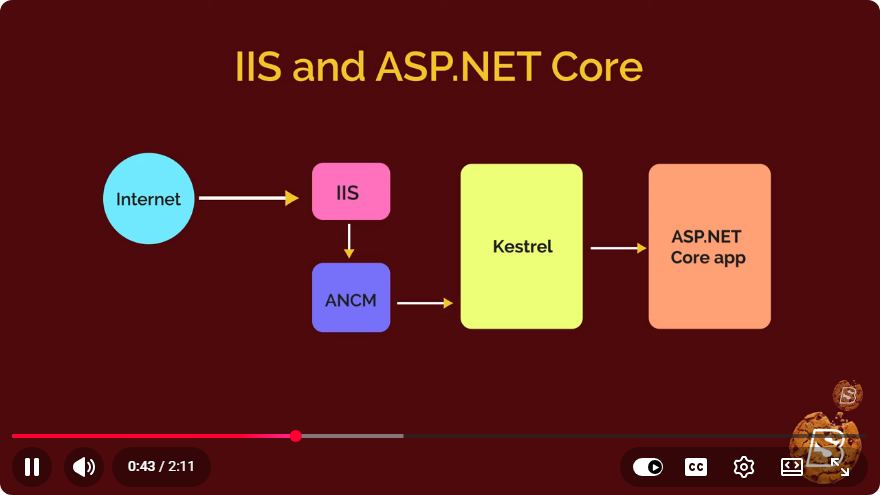

Screenshot from the tutorial

Deploying ASP.NET Core MVC to IIS: A Step-by-Step Guide

Deploying an ASP.NET Core MVC application to IIS can seem daunting, especially if you're new to web hosting and server management. In this tutorial, we'll break down the process into manageable steps, ensuring that you have everything you need to get your application up and running smoothly. This guide is based on the YouTube video titled "ASP NetMVC Core Deploy Setup IIS" and aims to provide a clear, concise, and practical approach to deployment.

Prerequisites

Before we begin, make sure you have the following:

1. Windows Server: You need a machine running Windows Server with IIS installed.
2. .NET Core Hosting Bundle: Ensure that the .NET Core Hosting Bundle is installed on the server. This bundle includes the necessary runtime and hosting libraries.
3. Visual Studio: It’s helpful to have Visual Studio installed for building your ASP.NET Core application.

Step 1: Publish Your ASP.NET Core Application

First, you need to publish your ASP.NET Core application to prepare it for deployment.

1. Open your ASP.NET Core project in Visual Studio.
2. Right-click on the project in Solution Explorer and select Publish.
3. Choose a target for your publish. For this guide, you can select Folder and specify a local path where the build output will be saved.
4. Click Publish. This process compiles your application and prepares the necessary files for deployment.

Step 2: Prepare Your IIS Server

Next, you need to set up your IIS server to host the ASP.NET Core application.

1. Open IIS Manager: Press Windows + R, type inetmgr, and hit Enter.
2. Add a New Website:
   • In the Connections pane, right-click on Sites and select Add Website.
   • Fill in the details:
     • Site name: Choose a name for your site (e.g., MyAspNetCoreApp).
     • Physical path: Browse to the folder where you published your application.
     • Binding: Choose the appropriate type (HTTP or HTTPS), and specify the port (default is 80 for HTTP).
   • Click OK to create the site.

Step 3: Configure Application Pool

Set up the application pool for your new site to ensure it runs correctly.

1. In the IIS Manager, select Application Pools.
2. Find the application pool associated with your new site (it will have the same name).
3. Right-click on it and select Basic Settings.
4. Set the .NET CLR version to No Managed Code since ASP.NET Core runs in its own process.

Step 4: Set Permissions

Permissions are crucial for the application to run without issues.

1. Navigate to the folder where your application is published.
2. Right-click the folder, select Properties, and go to the Security tab.
3. Click Edit, then Add.
4. Type IIS_IUSRS and click Check Names to verify.
5. Grant Read & Execute, List Folder Contents, and Read permissions.

Step 5: Configure Web.config

Ensure you have a web.config file in your published folder. This file is essential for routing requests to your ASP.NET Core application. A basic web.config file looks like this:

<configuration>
  <system.webServer>
    <handlers>
      <add name="aspNetCore" path="*" verb="*" modules="AspNetCoreModuleV2" resourceType="Unspecified"/>
    </handlers>
    <aspNetCore processPath="dotnet" arguments=".\YourAppName.dll" stdoutLogEnabled="false" stdoutLogFile=".\logs\stdout" hostingModel="InProcess" />
  </system.webServer>
</configuration>

Make sure to replace YourAppName.dll with the name of your published DLL file.

Step 6: Start Your Application

Once everything is configured, it's time to start your application.

1. In IIS Manager, right-click on your site and select Manage Website > Start.
2. Open a web browser and navigate to your site (e.g., http://localhost or http://your-server-ip).
3. If everything is configured correctly, your ASP.NET Core MVC application should be up and running!

Troubleshooting Tips

• Check the Event Viewer: If you encounter issues, check the Windows Event Viewer under Windows Logs > Application for any related error messages.
• Logs: If you enabled logging in your web.config, check the logs for detailed error messages.
• Firewall Settings: Ensure that your server's firewall allows traffic on the port you’ve configured.

Conclusion

Deploying an ASP.NET Core MVC application to IIS is a straightforward process if you follow the steps outlined in this guide. By publishing your application, configuring IIS, and ensuring proper permissions, you can have your application live in just a few minutes. With practice, you’ll become more comfortable with the deployment process, making it even quicker and more efficient in the future. Happy coding!
