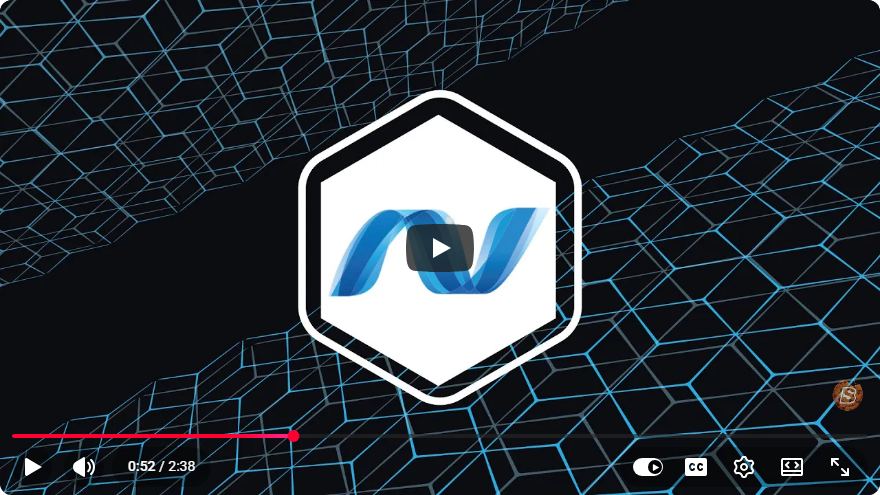

Screenshot from the tutorial

Understanding ASP.NET Core MVC Views and Model Binding with ViewComponents

In this blog post, we will explore the concept of Views and Model Binding in ASP.NET Core MVC, with a special focus on using ViewComponents. This follow-up tutorial builds on your foundational knowledge of ASP.NET MVC and aims to enhance your skills in creating dynamic web applications.

What is Model Binding?

Model binding is a process in ASP.NET Core MVC that allows you to map incoming request data to your model classes. When a user submits data through a form, the framework automatically binds this data to your action method parameters or model classes. This feature simplifies data handling and improves code readability.

How Model Binding Works

When a request is made, ASP.NET Core MVC examines the data sent, typically as form data or query strings. It then matches this data to the properties of your model and populates them accordingly. For example:

public class UserModel
{
    public string FirstName { get; set; }
    public string LastName { get; set; }
}

[HttpPost]
public IActionResult SubmitUser(UserModel user)
{
    // user.FirstName and user.LastName are automatically populated
    // Process your user data here
    return View();
}

In this example, when a user submits a form with fields named FirstName and LastName, the SubmitUser action method will automatically receive a UserModel object with the corresponding properties filled with the submitted values.

Introduction to ViewComponents

ViewComponents in ASP.NET Core MVC are a powerful feature that allows you to create reusable components encapsulating both the logic and rendering of a part of your view. They are similar to partial views but provide more functionality, including the ability to accept parameters and execute logic.

Creating a ViewComponent

To create a ViewComponent, you need to follow these steps:

1. Create a ViewComponent Class: This class should inherit from ViewComponent.

   public class GreetingViewComponent : ViewComponent
   {
       public IViewComponentResult Invoke(string name)
       {
           return View("Default", name);
       }
   }


2. Create a View for the ViewComponent: The view should be placed in the Views/Shared/Components/<ComponentName>/ directory. For the GreetingViewComponent, it would look like this:

   Views/
   └── Shared/
       └── Components/
           └── Greeting/
               └── Default.cshtml


3. Rendering the ViewComponent: You can render the ViewComponent in your main view using the Component method.

   @await Component.InvokeAsync("Greeting", new { name = "John" })


Example of Binding Model in ViewComponents

Let’s enhance our ViewComponent by accepting a model and using model binding within it. Here’s how you can implement this:

1. Define a Model:

   public class UserGreetingModel
   {
       public string UserName { get; set; }
   }


2. Update the ViewComponent:

   public class GreetingViewComponent : ViewComponent
   {
       public IViewComponentResult Invoke(UserGreetingModel model)
       {
           return View("Default", model);
       }
   }


3. Create a View:

   @model YourNamespace.UserGreetingModel

   <div>
       Hello, @Model.UserName!
   </div>


4. Invoke the ViewComponent:

   @await Component.InvokeAsync("Greeting", new { model = new UserGreetingModel { UserName = "Alice" } })


Conclusion

In this tutorial, we covered the essentials of Model Binding in ASP.NET Core MVC and how to enhance your applications using ViewComponents. By effectively utilizing these tools, you can create more modular and maintainable web applications. Remember that ViewComponents are excellent for encapsulating logic related to UI components, making your codebase cleaner and more organized.

Feel free to experiment with the examples provided and integrate them into your projects. Happy coding!

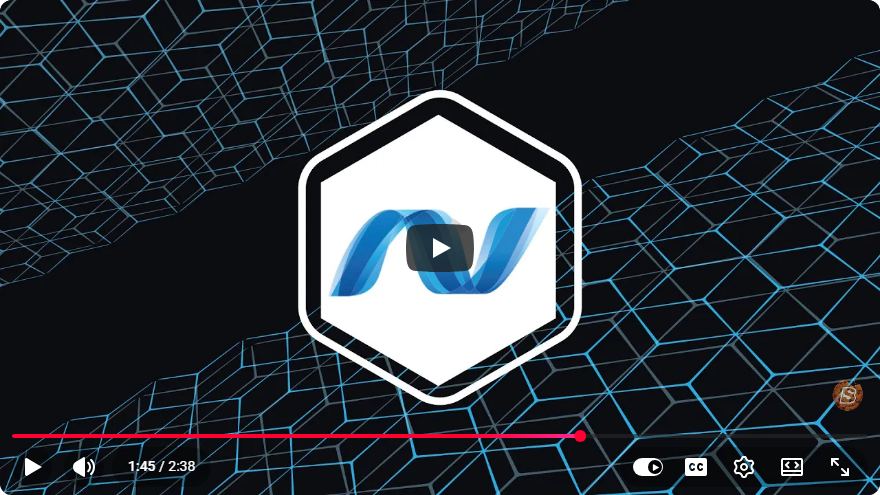

Another view from the tutorial

---
