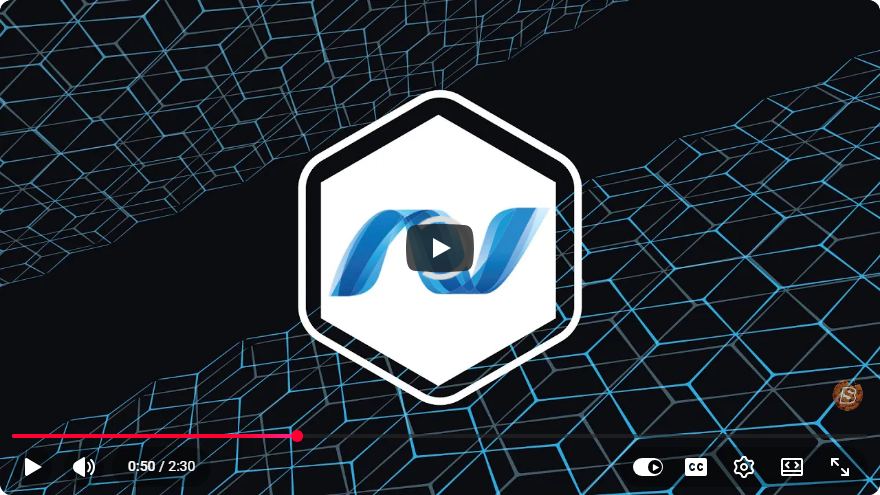

Screenshot from the tutorial

Working with Data in ASP.NET Core MVC Using Entity Framework Core

In the world of web development, seamless data handling is crucial for building efficient applications. ASP.NET Core MVC combined with Entity Framework Core offers a powerful framework for developing robust web applications. In this blog post, we will explore how to read data using Entity Framework Core in an ASP.NET Core MVC application.

Prerequisites

Before we get started, ensure you have the following:

• .NET Core SDK installed
• Visual Studio or Visual Studio Code
• Basic understanding of C# and ASP.NET Core MVC
• SQL Server (or any supported database) set up for your project

Setting Up the Project

First, let’s create a new ASP.NET Core MVC project:

1. Open Visual Studio and click on "Create a new project."
2. Select "ASP.NET Core Web Application" and click "Next."
3. Name your project (e.g., MvcDataDemo) and choose a location to save it. Click "Create."
4. In the next window, select "Web Application (Model-View-Controller)" and ensure that "Enable Docker" is unchecked. Click "Create."

Adding Entity Framework Core

To work with Entity Framework Core, we need to add the necessary packages. You can do this via the NuGet Package Manager Console:

Install-Package Microsoft.EntityFrameworkCore.SqlServer
Install-Package Microsoft.EntityFrameworkCore.Tools

Creating the Data Model

Next, we will create a simple data model representing a Product. Create a new folder named Models and add a class called Product.cs:

namespace MvcDataDemo.Models
{
    public class Product
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public decimal Price { get; set; }
    }
}

Setting Up the Database Context

Now, let’s create a database context that will interact with the database. Create a new folder named Data and add a class called ApplicationDbContext.cs:

using Microsoft.EntityFrameworkCore;
using MvcDataDemo.Models;

namespace MvcDataDemo.Data
{
    public class ApplicationDbContext : DbContext
    {
        public ApplicationDbContext(DbContextOptions<ApplicationDbContext> options) : base(options) { }

        public DbSet<Product> Products { get; set; }
    }
}

Configuring the Database Connection

Next, we need to configure the database connection in appsettings.json. Add a connection string under the ConnectionStrings section:

{
  "ConnectionStrings": {
    "DefaultConnection": "Server=(localdb)\\mssqllocaldb;Database=MvcDataDemo;Trusted_Connection=True;MultipleActiveResultSets=true"
  },
  ...
}

Then, open Startup.cs and register the database context within the ConfigureServices method:

using MvcDataDemo.Data;
using Microsoft.EntityFrameworkCore;

public void ConfigureServices(IServiceCollection services)
{
    services.AddDbContext<ApplicationDbContext>(options =>
        options.UseSqlServer(Configuration.GetConnectionString("DefaultConnection")));
    services.AddControllersWithViews();
}

Creating the Controller

Now, let’s create a controller to manage our Product data. In the Controllers folder, add a class called ProductsController.cs:

using Microsoft.AspNetCore.Mvc;
using MvcDataDemo.Data;
using MvcDataDemo.Models;
using System.Linq;

namespace MvcDataDemo.Controllers
{
    public class ProductsController : Controller
    {
        private readonly ApplicationDbContext _context;

        public ProductsController(ApplicationDbContext context)
        {
            _context = context;
        }

        public IActionResult Index()
        {
            var products = _context.Products.ToList();
            return View(products);
        }
    }
}

Creating the View

Next, we need to create a view to display our products. In the Views/Products folder, create a file called Index.cshtml:

@model IEnumerable<MvcDataDemo.Models.Product>

<h1>Products</h1>

<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Price</th>
        </tr>
    </thead>
    <tbody>
        @foreach (var product in Model)
        {
            <tr>
                <td>@product.Id</td>
                <td>@product.Name</td>
                <td>@product.Price</td>
            </tr>
        }
    </tbody>
</table>

Running the Application

You are now ready to run your application. Open Startup.cs, and ensure the routing is configured correctly:

app.UseEndpoints(endpoints =>
{
    endpoints.MapControllerRoute(
        name: "default",
        pattern: "{controller=Products}/{action=Index}/{id?}");
});

Now, run your application, and navigate to /Products. You should see a table displaying the products from your database.

Conclusion

In this tutorial, we’ve covered the basics of setting up an ASP.NET Core MVC application to read data using Entity Framework Core. We created a simple data model, set up a database context, created a controller, and displayed the data in a view.

Entity Framework Core simplifies database operations, allowing developers to focus on building features rather than writing complex SQL queries. By following this tutorial, you have laid the groundwork for more complex data interactions in your ASP.NET Core MVC applications.

Happy coding!

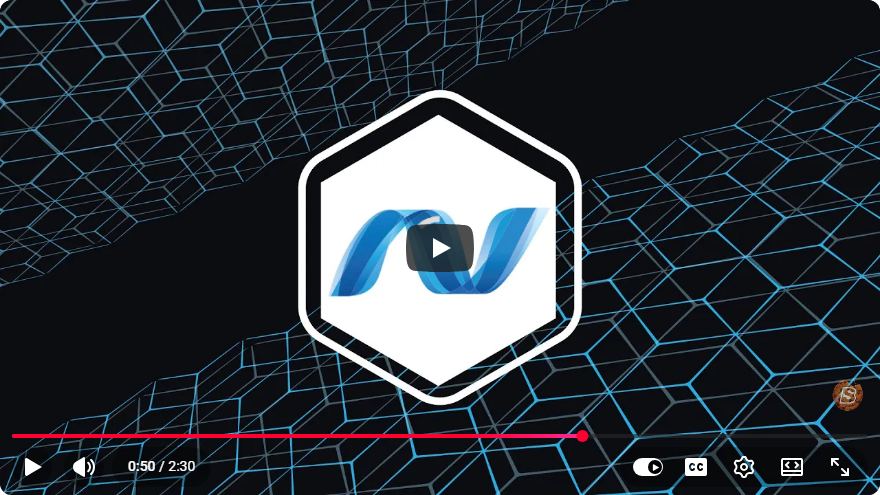

Another view from the tutorial

---
