Unleashing the Power of HTML 5: Enhancing User Interaction with HTML5 Drag and Drop
Unleashing the Power of HTML5: Enhancing User Interaction with HTML5 Drag and Drop
The web is no longer just a static collection of pages; it is an interactive experience. HTML5 has introduced several features to enhance user interaction, one of the most exciting being the Drag and Drop API. This powerful feature allows developers to create more engaging and intuitive web applications. In this blog post, we will explore how to implement drag and drop functionality using HTML5, making your applications more interactive and user-friendly.
What is Drag and Drop?
Drag and Drop is a user interface interaction that allows users to click and hold an item, drag it to a different location, and then release it, effectively moving or copying that item. This interaction is prevalent in applications like file managers, image galleries, and online shopping carts.
Getting Started with HTML5 Drag and Drop
Before diving into code, let's review the essential components that make drag and drop work in HTML5:
- Draggable Elements: The elements that can be dragged.
- Drop Targets: The elements where draggable items can be dropped.
- Event Listeners: JavaScript functions that respond to drag and drop events.
Setting Up Your HTML Structure
To begin implementing drag and drop functionality, you'll need a basic HTML structure. Below is an example containing draggable items and a drop zone.
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>HTML5 Drag and Drop</title>
<style>
.draggable {
width: 100px;
height: 100px;
margin: 10px;
background-color: #3498db;
color: white;
text-align: center;
line-height: 100px;
cursor: grab;
}
.dropzone {
width: 300px;
height: 300px;
border: 2px dashed #3498db;
display: flex;
align-items: center;
justify-content: center;
margin-top: 20px;
}
</style>
</head>
<body>
<div class="draggable" draggable="true">Drag me!</div>
<div class="dropzone">Drop here!</div>
<script src="script.js"></script>
</body>
</html>
Making Elements Draggable
To make an element draggable, you need to set the draggable attribute to true. You will also need to add event listeners to manage the drag events.
Adding JavaScript for Drag and Drop
In your script.js file, you will handle the drag events. Here’s how to set it up:
const draggable = document.querySelector('.draggable');
const dropzone = document.querySelector('.dropzone');
draggable.addEventListener('dragstart', (event) => {
event.dataTransfer.setData('text/plain', event.target.innerText);
event.dataTransfer.effectAllowed = 'move';
});
dropzone.addEventListener('dragover', (event) => {
event.preventDefault(); // Prevent default to allow drop
});
dropzone.addEventListener('drop', (event) => {
event.preventDefault(); // Prevent default behavior
const data = event.dataTransfer.getData('text/plain');
dropzone.innerText = `Dropped: ${data}`;
});
Explanation of the Code
Drag Start: The
dragstartevent is triggered when the user starts dragging the element. Here, we useevent.dataTransfer.setDatato hold the data we want to transfer (in this case, the text of the draggable element).Drag Over: The
dragoverevent is necessary for the dropzone to accept the dropped item. Callingevent.preventDefault()tells the browser that we want to allow dropping.Drop: The
dropevent is triggered when the dragged element is released over the drop zone. We retrieve the data stored indataTransferand update the drop zone's inner text.
Conclusion
HTML5's Drag and Drop API is a powerful tool that enhances user interaction, making applications more intuitive and engaging. By implementing just a few lines of HTML and JavaScript, you can create a smooth drag-and-drop experience that users will appreciate.
Experiment with this functionality by adding more draggable items or multiple drop zones to enrich your web applications. As you get more comfortable with the drag and drop API, you can start integrating it with other features, like data storage or visual effects, to create a truly dynamic user interface.

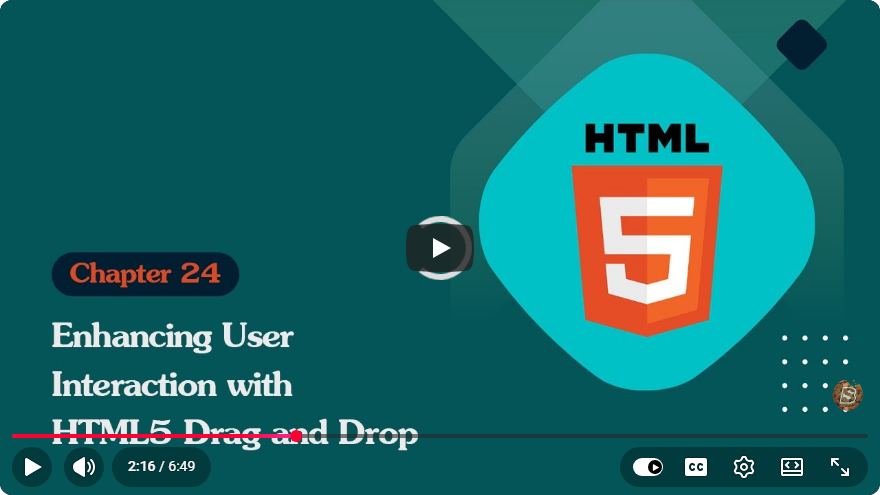

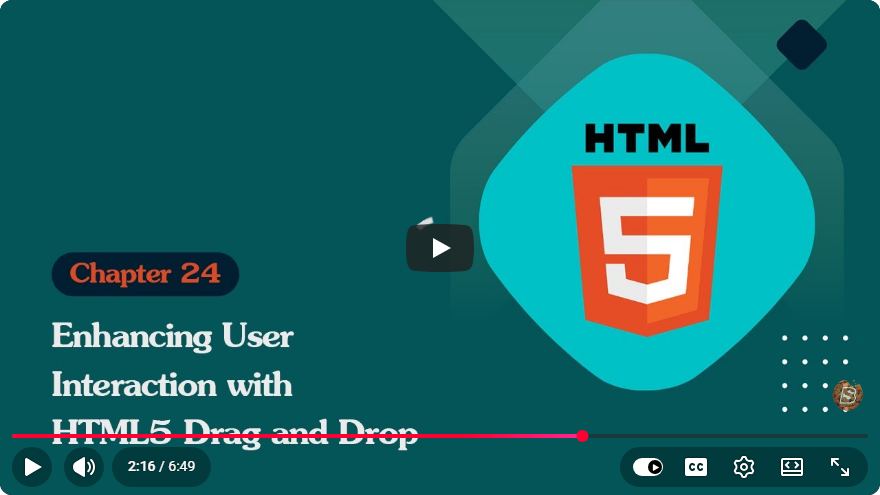

For a deeper dive, check out the YouTube video that inspired this post. Happy coding!
