Web Designers : Transforming a flex container into a grid using flex-wrap and align-content.
Transforming a Flex Container into a Grid Using Flex-Wrap and Align-Content
In the world of web design, understanding layout techniques is crucial for creating visually appealing and functional websites. One powerful combination of CSS properties that can help you achieve a grid-like structure is the use of flex-wrap and align-content. In this post, we’ll explore how to transform a flex container into a grid layout, even when dealing with dynamic content.
What is Flexbox?
Flexbox, or the Flexible Box Layout, is a CSS layout model designed to provide a more efficient way to lay out, align, and distribute space among items in a container. Unlike traditional box models, Flexbox allows for the arrangement of elements in a single dimension, either as a row or a column.
Key Properties of Flexbox
- display: flex: This initiates a flex container and activates flex properties for its children.
- flex-wrap: This property controls whether flex items should wrap onto multiple lines or stay on a single line.
- align-content: This property aligns flex lines within the flex container when there is extra space in the cross-axis.
Getting Started
To illustrate the transformation of a flex container into a grid, let’s start with a simple HTML structure. Here’s an example of a basic layout:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Flex to Grid Example</title>
<link rel="stylesheet" href="styles.css">
</head>
<body>
<div class="flex-container">
<div class="flex-item">1</div>
<div class="flex-item">2</div>
<div class="flex-item">3</div>
<div class="flex-item">4</div>
<div class="flex-item">5</div>
<div class="flex-item">6</div>
</div>
</body>
</html>
CSS Styling
Next, we will apply CSS to style our flex container and items. Here’s how you can do it:
/* styles.css */
body {
font-family: Arial, sans-serif;
}
.flex-container {
display: flex;
flex-wrap: wrap; /* Allows items to wrap onto multiple lines */
align-content: space-between; /* Distributes space between the lines */
height: 400px; /* Fixed height to demonstrate alignment */
background-color: #f0f0f0;
padding: 10px;
}
.flex-item {
flex: 1 1 30%; /* Grow, shrink, and base size */
margin: 10px;
background-color: #4CAF50;
color: white;
text-align: center;
padding: 20px;
box-sizing: border-box;
}
Breakdown of the CSS
display: flex;: This makes the.flex-containera flex container.flex-wrap: wrap;: This allows the flex items to wrap into multiple rows if they exceed the container width.align-content: space-between;: This property distributes space between each line of items, giving a grid-like appearance.flex: 1 1 30%;: This sets the flex items to grow and shrink, with a base size of 30% of the container width.margin: 10px;: Adds spacing between the flex items.
Visualizing the Transformation
When you apply the above CSS styles, your flex items will wrap and align into a grid format, thanks to the properties flex-wrap and align-content. Here’s what each property contributes to the final layout:
- Flex-Wrap: It allows the items to move to the next line when there’s not enough space, effectively creating rows.
- Align-Content: This ensures that the space between rows is distributed evenly, making the grid look tidy.
Conclusion
Using Flexbox properties such as flex-wrap and align-content, you can easily transform a standard flex container into a grid-like layout. This approach is particularly useful when dealing with dynamic content, as it allows for flexible and responsive designs.
Feel free to experiment with the number of items, their sizes, and the container’s dimensions to see how the layout changes. Understanding these properties will empower you to create more complex and visually appealing web designs.

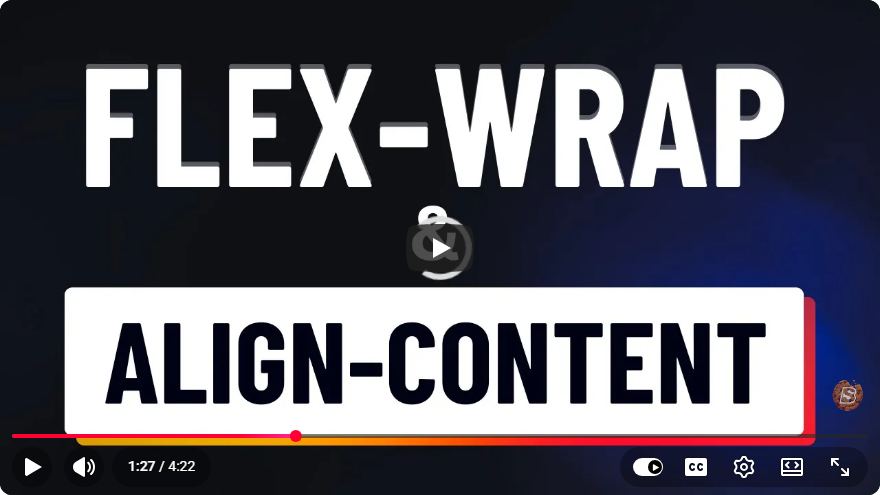

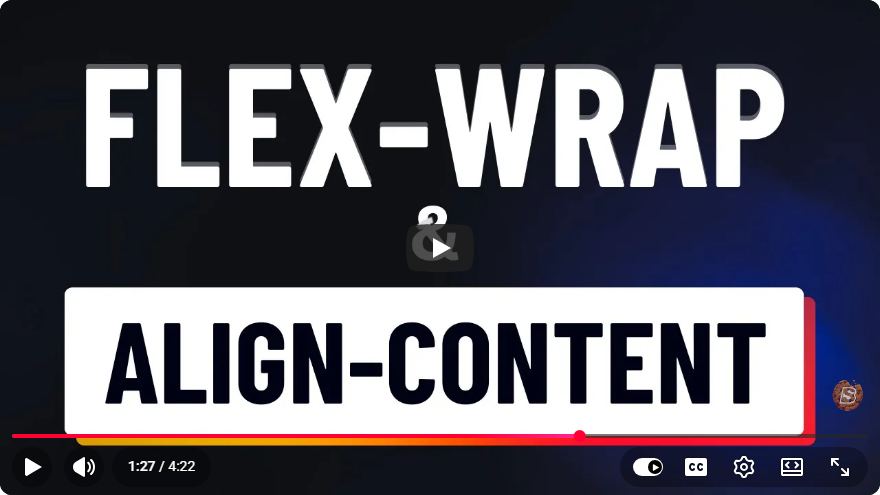

For more detailed examples and practical applications, don’t hesitate to check out the YouTube video that inspired this post. Happy designing!
