Web Designers : Utilizing flex-shrink and flex-grow for optimal resizing of flexbox child elements

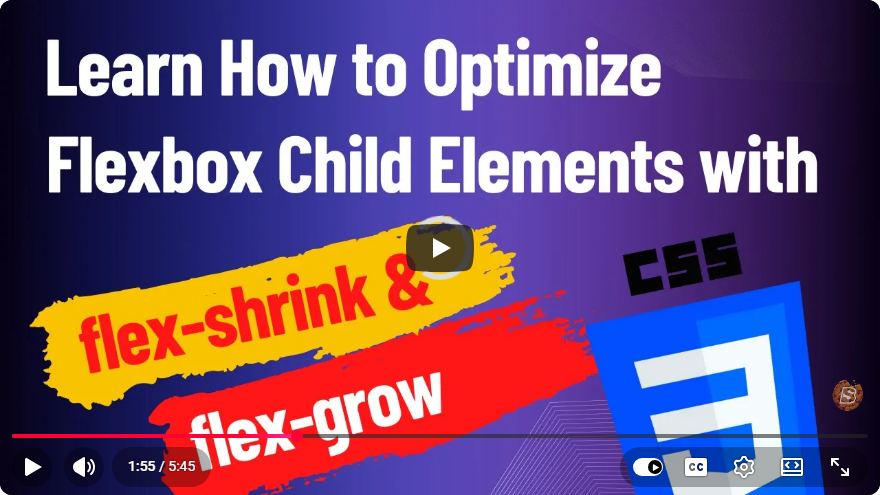

Screenshot from the tutorial

Mastering Flexbox: Utilizing flex-shrink and flex-grow for Optimal Resizing of Flexbox Child Elements

Flexbox is a powerful layout tool in CSS that allows for responsive design principles to be applied easily. Among its many properties, flex-grow and flex-shrink are essential for controlling how flex items resize within a flex container. In this blog post, we will explore how to effectively use these properties for optimal resizing of flexbox child elements.

Understanding Flexbox

Before diving into flex-grow and flex-shrink, let’s briefly review what Flexbox is. Flexbox, or the Flexible Box Layout, is a CSS layout model that provides a more efficient way to lay out, align, and distribute space among items in a container, even when their size is unknown or dynamic.

Key Concepts of Flexbox

• Flex Container: The parent element that holds the flex items.
• Flex Items: The child elements that are laid out within the flex container.
• Main Axis and Cross Axis: The main axis is defined by the flex-direction property (row or column), while the cross axis is perpendicular to it.

flex-grow: Expanding Flex Items

The flex-grow property defines the ability for a flex item to grow relative to the other items in the flex container. It takes a unitless value, which acts as a proportion of the space available.

Syntax

.item {
    flex-grow: <number>;
}

Example

Let’s consider an example where we have three flex items inside a flex container. We want the first item to take up more space compared to the other two.

<div class="flex-container">
    <div class="item item1">Item 1</div>
    <div class="item item2">Item 2</div>
    <div class="item item3">Item 3</div>
</div>

.flex-container {
    display: flex;
}

.item {
    background-color: lightgrey;
    padding: 20px;
}

.item1 {
    flex-grow: 2; /* Takes twice the space */
}

.item2, .item3 {
    flex-grow: 1; /* Takes equal space */
}

Explanation

In this example:

• Item 1 will grow to take twice the space compared to Item 2 and Item 3, which will share the remaining space evenly. This is because Item 1 has a flex-grow value of 2, while the others have a value of 1.

flex-shrink: Reducing Flex Items

On the other hand, the flex-shrink property defines how a flex item will shrink relative to the other items when the flex container is too small to fit all items.

Syntax

.item {
    flex-shrink: <number>;
}

Example

Let’s modify our previous example to see how flex-shrink works when we reduce the size of the container.

.flex-container {
    display: flex;
    width: 300px; /* Fixed width */
}

.item {
    background-color: lightgrey;
    padding: 20px;
}

.item1 {
    flex-grow: 1;
    flex-shrink: 1; /* Default value */
}

.item2 {
    flex-grow: 1;
    flex-shrink: 2; /* Will shrink more than item1 */
}

.item3 {
    flex-grow: 1;
    flex-shrink: 3; /* Will shrink the most */
}

Explanation

In this scenario:

• If the container width is reduced, Item 2 will shrink at a rate of 2, and Item 3 will shrink at a rate of 3. As a result, Item 3 will become the smallest, while Item 1 will retain more of its size due to its lower flex-shrink value.

Combining flex-grow and flex-shrink

Often, you will want to use both flex-grow and flex-shrink together to create a responsive design that adapts to different screen sizes.

Example

.flex-container {
    display: flex;
    width: 100%;
}

.item {
    background-color: lightgrey;
    padding: 20px;
}

.item1 {
    flex-grow: 2;
    flex-shrink: 1; /* Less likely to shrink */
}

.item2 {
    flex-grow: 1;
    flex-shrink: 2; /* More likely to shrink */
}

.item3 {
    flex-grow: 1;
    flex-shrink: 3; /* Most likely to shrink */
}

Explanation

In this example, Item 1 will prioritize growing to fill space, while Item 3 will shrink the most when space is limited. This combination allows for a flexible and responsive layout.

Conclusion

Understanding flex-grow and flex-shrink is crucial for any web designer looking to master Flexbox. By utilizing these properties, you can create layouts that adapt gracefully to different screen sizes, ensuring that your web designs remain user-friendly and visually appealing.

Experiment with these properties in your projects, and you will soon find that Flexbox can simplify the way you approach layout design. Happy coding!

Another view from the tutorial

---
