Entity Framework - Create Table Using C# Classes with the Code First Approach

Entity Framework (EF) is a popular Object-Relational Mapping (ORM) framework for .NET applications. It allows developers to interact with a database using C# classes, making data manipulation more intuitive and less prone to errors. In this blog post, we will explore how to create a table in a database using the Code First approach in Entity Framework, following the principles discussed in the YouTube video "Entity Framework - Create Table using C# classes using Code First approach."

What is Code First Approach?

The Code First approach in Entity Framework allows developers to define their database schema using C# classes. This means you can start by writing your classes and then use EF to create the corresponding database tables automatically. It is particularly useful when you have an existing domain model or want to keep your database schema in sync with your code.

Setting Up Your Project

To get started, ensure you have the following prerequisites:

1. Visual Studio: Download and install the latest version of Visual Studio if you haven't already.
2. Entity Framework: Ensure you have added Entity Framework to your project. You can do this via NuGet Package Manager.

To install Entity Framework, run the following command in the NuGet Package Manager Console:

Install-Package EntityFramework

Creating Your Model Classes

Step 1: Define Your Entities

Let's create a simple example where we define a Product class. This class will represent a table in our database.

public class Product
{
    public int Id { get; set; } // Primary key
    public string Name { get; set; }
    public decimal Price { get; set; }
}

Step 2: Create Your DbContext

Next, we need to create a DbContext class. This class will manage the entity objects during runtime and handle the database connection.

using System.Data.Entity;

public class ApplicationDbContext : DbContext
{
    public DbSet<Product> Products { get; set; } // DbSet for Product entity
}

Configuring the Database Connection

In order to connect to a database, you need to specify the connection string in your App.config or Web.config file. Here’s an example of a connection string for a local SQL Server database:

<configuration>
  <connectionStrings>
    <add name="ApplicationDbContext"
         connectionString="Data Source=(localdb)\MSSQLLocalDB;Initial Catalog=MyDatabase;Integrated Security=True;"
         providerName="System.Data.SqlClient" />
  </connectionStrings>
</configuration>

Creating the Database

Step 1: Enable Migrations

To create and manage changes to the database schema, you'll need to enable migrations. Open the Package Manager Console and run:

Enable-Migrations

This generates a Migrations folder where you can track changes to your database schema.

Step 2: Create a Migration

After enabling migrations, you can create a migration script that corresponds to your model changes. Run the following command:

Add-Migration InitialCreate

This command creates a new migration file in the Migrations folder, which contains the necessary code to create the Products table based on your Product class.

Step 3: Update the Database

Finally, apply the migration to the database with the following command:

Update-Database

This command will execute the migration and create the Products table in your database.

Conclusion

Congratulations! You've successfully created a table in your database using the Code First approach in Entity Framework. By following these steps, you can easily define your domain models in C# and let Entity Framework handle the database interactions. This approach not only streamlines development but also ensures that your database schema remains consistent with your application’s data model.

For further learning, consider experimenting with relationships, data annotations, and querying data using LINQ with Entity Framework. Happy coding!

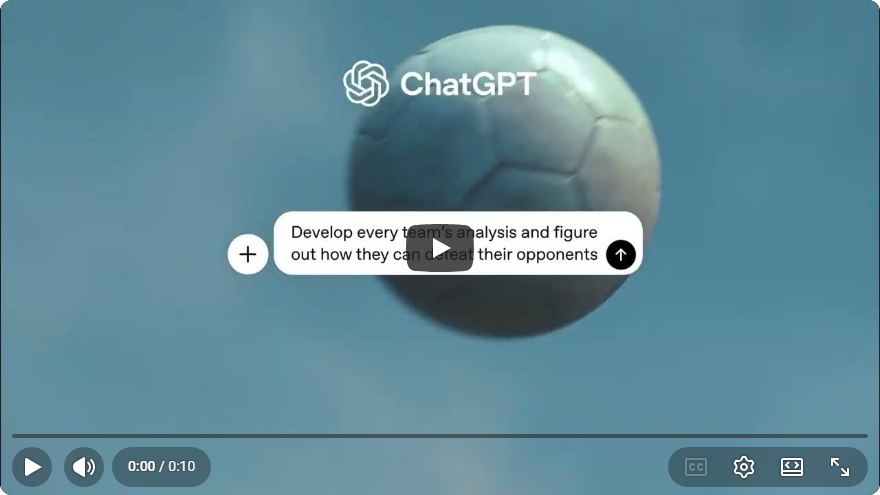

Another view from the tutorial

---
