SQL Server - Creating Non-Clustered Index using SQL Server Management Studio

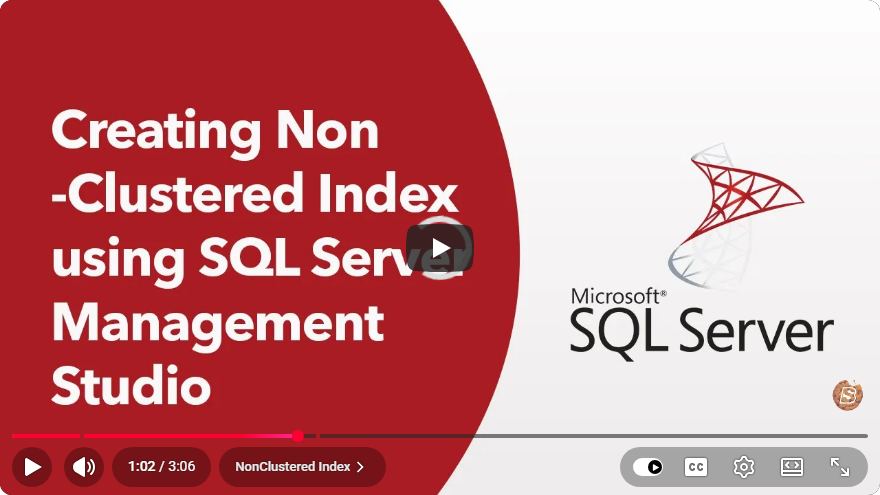

Screenshot from the tutorial

Creating Non-Clustered Index in SQL Server Management Studio

In SQL Server, indexes are essential for optimizing query performance. Among the various types of indexes available, non-clustered indexes play a crucial role in enhancing data retrieval speeds without altering the physical order of the rows in a table. In this tutorial, we will explore how to create a non-clustered index using SQL Server Management Studio (SSMS) in a straightforward manner.

What is a Non-Clustered Index?

A non-clustered index is a separate structure from the data table that contains a sorted list of keys and pointers to the actual data. This means that the data can remain in any order while the index provides a quick way to search for specific values. Non-clustered indexes are particularly useful for optimizing read-heavy queries and can significantly reduce the time taken to retrieve data.

Benefits of Non-Clustered Indexes

1. Improved Query Performance: Non-clustered indexes speed up data retrieval operations, making searches and joins more efficient.
2. Multiple Indexes: You can create multiple non-clustered indexes on a single table, allowing for optimization of various query patterns.
3. Flexible Data Organization: They do not alter the physical layout of the data, providing flexibility in how data is accessed.

Prerequisites

Before you begin creating a non-clustered index, make sure you have:

• SQL Server and SQL Server Management Studio (SSMS) installed.
• Access to a database where you can experiment with creating indexes.

Steps to Create a Non-Clustered Index in SSMS

Step 1: Open SQL Server Management Studio

1. Launch SQL Server Management Studio.
2. Connect to the SQL Server instance where your database is located.

Step 2: Locate Your Database

1. In the Object Explorer, expand the Databases node.
2. Find and expand the database where you want to create the non-clustered index.

Step 3: Navigate to the Table

1. Expand the Tables node under your selected database.
2. Right-click on the table you want to index and select Design or View Data.

Step 4: Create the Non-Clustered Index

1. In the Table Designer, right-click anywhere on the table and choose Indexes/Keys.



2. In the Indexes/Keys dialog box, click the Add button to create a new index.

3. In the Properties window for the new index, you can configure several important settings:

   • Name: Provide a name for your index (e.g., IX_YourTable_ColumnName).
   • Index Type: Ensure that the type is set to Non-Clustered.
   • Columns: Click the ellipsis button (...) next to the Columns property. Select the columns you wish to include in the index. You can add multiple columns if needed.

Step 5: Save the Index

After you have configured the properties of your non-clustered index:

1. Click OK to close the Indexes/Keys dialog box.
2. Save the changes to the table design by clicking the Save icon or pressing Ctrl + S.

Step 6: Verify the Index Creation

To verify that your non-clustered index has been created successfully:

1. In the Object Explorer, refresh the table node.
2. Expand the Indexes folder under the chosen table. You should see your newly created index listed there.

Conclusion

Creating a non-clustered index in SQL Server Management Studio is a straightforward process that can significantly enhance the performance of your queries. By following the steps outlined in this tutorial, you can create, modify, and verify non-clustered indexes to optimize your database operations.

Additional Resources

• SQL Server Indexes Documentation
• Best Practices for SQL Server Indexing

Feel free to leave a comment or reach out if you have any questions or need further assistance! Happy indexing!
